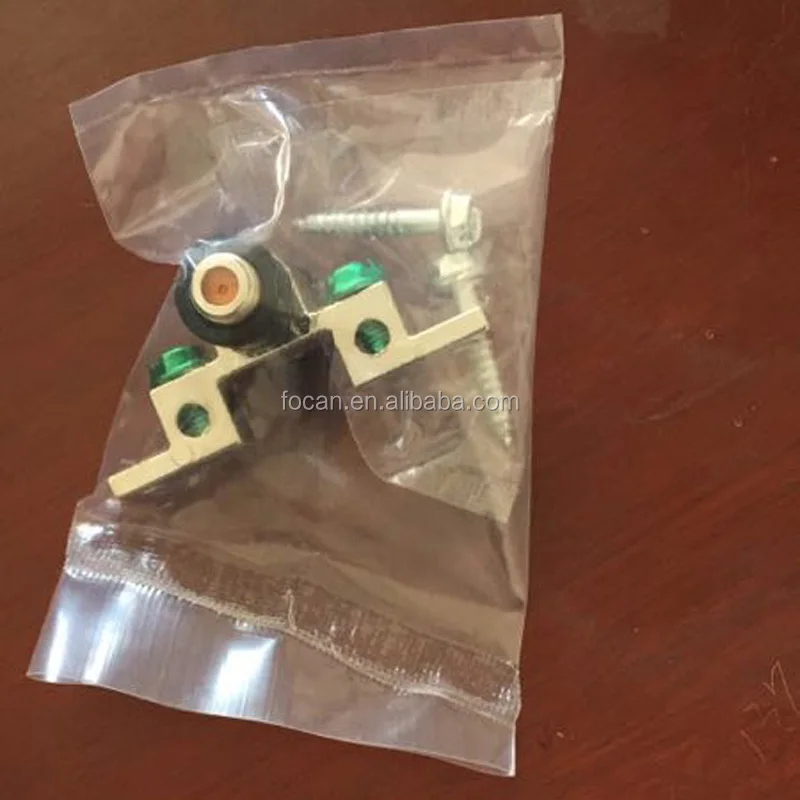

Standard coaxial F connections, Includes mounting screws.
Can be used on RG59, RG6, RG11, CCTV, CATV, SATV, Satellite cables
Bandwidth— 5MHz to 3 GHz
Impedance— 75 Ohms (nominal)
Return Loss— Better than -40 dB to 3 GHz
Insertion Loss— Better than -.10 dB to 3 GHz
Shielding Effectiveness— -140 dB minimum
Operating Temperature— -40o F to + 140o F (-40o C to 60o C)
Corrosion Resistance—meets SCTE and Belcore per ATSM B117 (1000 hour salt fog)
Moisture Migration—Meets SCTE IPS-TP-013 (Red-dye) when used with standard WS-500 port seals
Wire Gauge— Accepts #6 through #14 AWG
UL 467 listed #6 through #14 AWG ground wire
Raised body for ease of installation
360o multipoint contact seizure mechanism
Conforms to all ANSI/SCTE standards

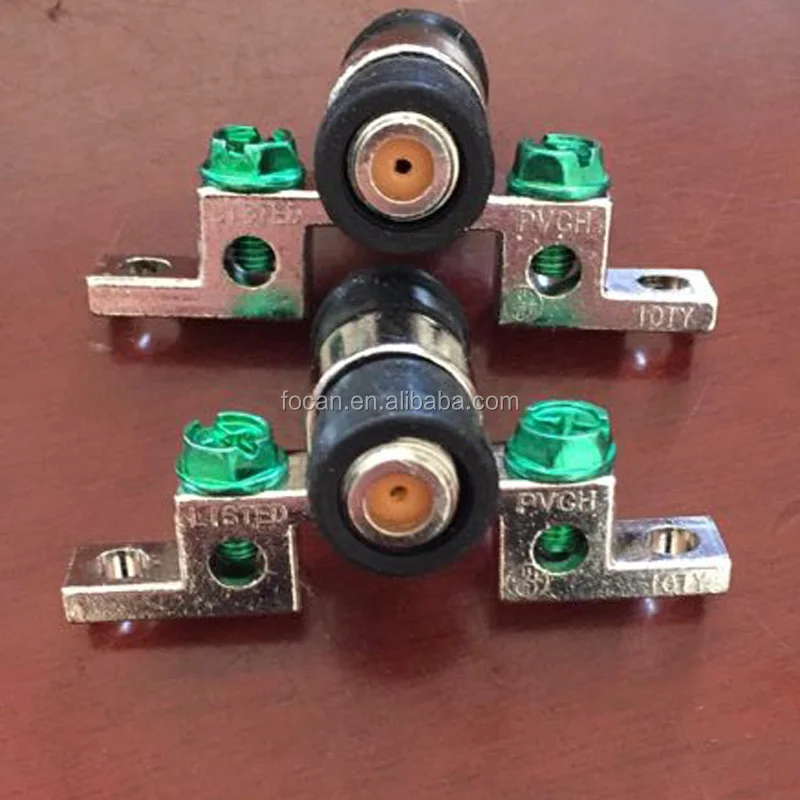

This ground block is used to ground coax cables from a multi-switch satellite dish or outdoor antenna. Used to ground and help protect fragile electronics such as satellite receivers and televisions from damaging lightning strikes and power surges.
