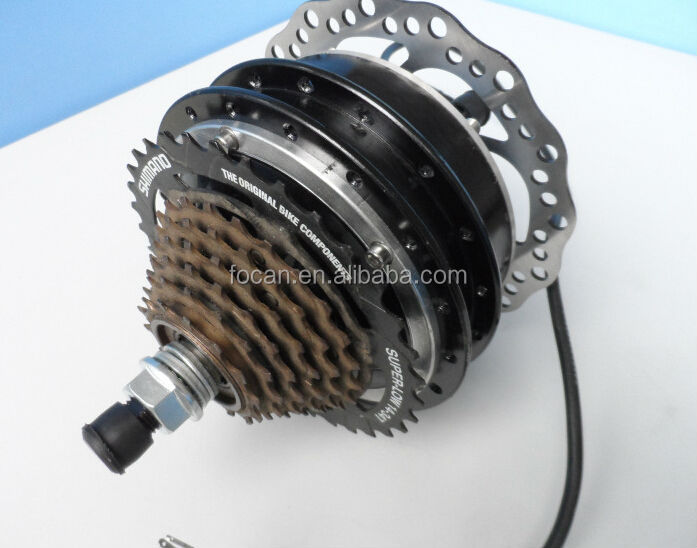

48V 350W Brushless Gearless Rear Hub Motor for Electric bike Ebike

FOB Reference Price:Get Latest Price
$100.00 - $300.00 / Piece | 1 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Voltage:
48V
Design:
Brushless
Wattage:
301 - 400w
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
carton
Port
shanghai
Lead Time :
25days

48V 350W Brushless Gearless Rear Hub Motor for Electric bike Ebike


Voltage: 24-48V
Power: 150-350W
Motor Type: Brushless Gearless Mini Hub Motor
Motor Net Weight: 4.6kgs
Motor Net Weight(with Speed Gear and Disc Brake Roto): 5.13kgs
Motor Diameter: 148mm
Motor Shaft Diameter: M14
Motor Shaft Length: 214.55mm
Motor Cable Length: 150mm
Hall Sensor Quantity: 3pcs
Max. Speed: 300RPM
Max. Torque: 15-25N.M
Magnet Body Size: 11.25*3*42*30mm
Min. Fork Width Requirement: Min.13.4cm
Brake: Disc Brake Roto can be installed by 6 screws
Corresponding Controller: 48V 350W Controller
Min. Fork Width Requirement: Min.134mm, only fit for bicycle rear wheel (can add single, 6 speed, 7 speed freewheel)
Disc Brake Available: Yes
Available Wheel Size: 12", 16", 18", 20", 24", 26", 700C, 28"
